Hydraulic lift cylinders play a crucial role in modern lifting and positioning equipment, offering powerful and precise motion control. Whether it’s in Aerial Work Platforms, Truck Cranes, or industrial machinery, understanding how these cylinders work can help users select the right system for their needs. In this article, we’ll explore how a hydraulic lift cylinder functions, the difference between single acting and double acting designs, and their applications in platforms like Scissor Lifts and Boom Lifts.
A hydraulic lift cylinder is a mechanical actuator that uses hydraulic pressure to create linear motion and force. These cylinders are often used in lifting applications to raise or lower heavy loads with high precision and minimal manual effort.
At its core, a hydraulic cylinder consists of:
When pressurized hydraulic fluid enters the cylinder, it pushes the piston, which in turn moves the rod. This rod movement is what performs the lifting or lowering task.
There are two primary types of hydraulic cylinders used in lifting systems: single acting and double acting.
A single acting hydraulic cylinder uses hydraulic pressure to move the piston in one direction (usually to lift), and gravity or an external force returns the piston to its original position. These are simpler in design, more cost-effective, and ideal for applications where the load naturally returns, such as vertical lifting.
In a double acting cylinder, hydraulic fluid is used for both extending and retracting the piston. This design allows for greater control and is suited for more complex lifting tasks, especially when the load must be moved in both directions regardless of gravity. Double acting rod hydraulic cylinders are common in equipment requiring precise bi-directional motion.
Hydraulic lift cylinders are indispensable in various industries. Here are a few examples where they are commonly used:
Aerial Work Platforms (AWPs) rely heavily on hydraulic systems for elevation and stability. These platforms use hydraulic lift cylinders to safely raise workers to heights for construction, maintenance, or inspection tasks.

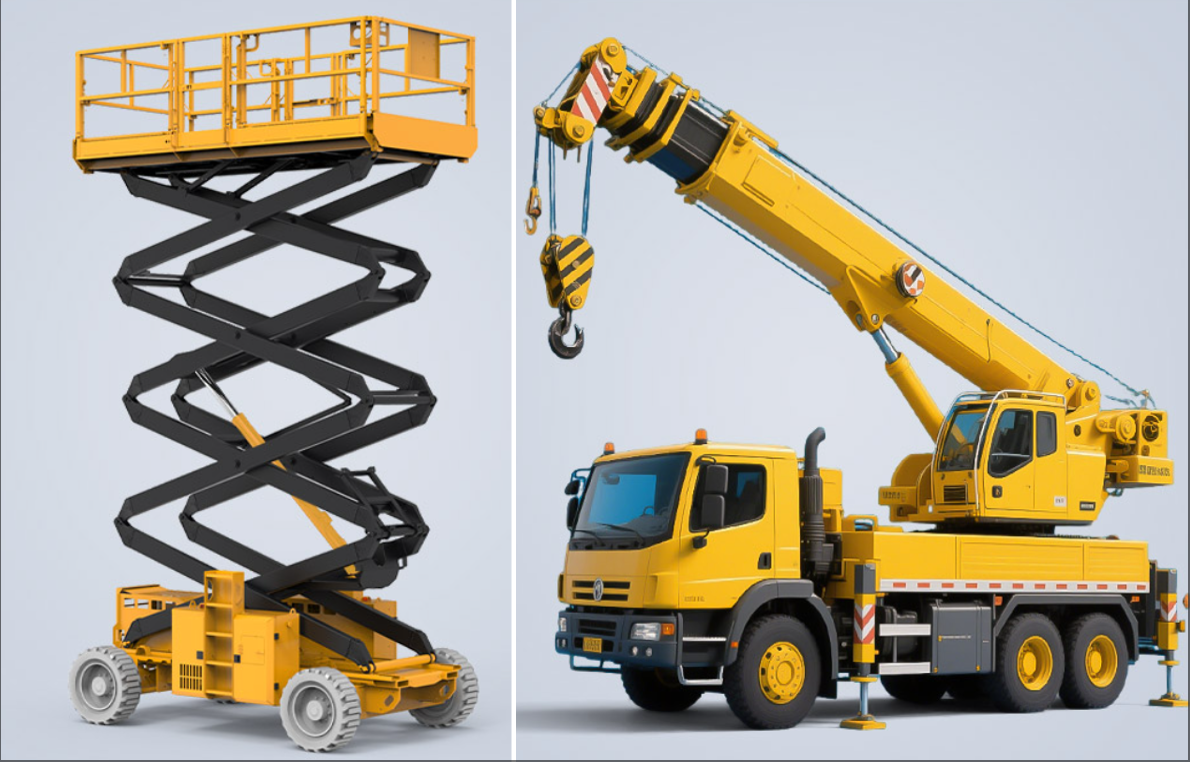

A Scissor Lift Aerial Platform features a crisscrossing steel support structure powered by hydraulic lift cylinders. When the cylinders extend, they force the scissor legs apart, raising the platform vertically. Depending on the design, both single acting and double acting cylinders may be used.
Boom Lift Aerial Platforms use extendable arms to reach greater heights and distances. These platforms are equipped with double acting rod hydraulic cylinders, offering superior control and maneuverability for reaching complex angles.
Truck Cranes use powerful lifting cylinders to hoist and position heavy loads. These hydraulic lift cylinders are typically double acting due to the need for both lift and controlled lowering, regardless of load weight or angle.
A hydraulic lift cylinder is the powerhouse behind many lifting machines, from Scissor Lift Aerial Platforms to Truck Cranes. By converting hydraulic energy into mechanical motion, these cylinders offer reliable, efficient, and safe lifting capabilities. Understanding the difference between single acting and double acting cylinders, and how rod hydraulic cylinders function, helps in selecting the right solution for your application.
Whether you’re working with an Aerial Work Platform, a Boom Lift, or heavy machinery, the right hydraulic cylinder ensures maximum performance and safety.
