When it comes to pile driving equipment, hydraulic cylinders play a critical role in ensuring the smooth and powerful operation of the machinery. But what exactly is a hydraulic cylinder for pile driver, and why is it so essential? This blog explores the function, significance, and maintenance of these key components in the pile driving process.

The Role of Hydraulic Cylinders in Pile Driving

A hydraulic cylinder for pile driver is a mechanical actuator that uses pressurized hydraulic fluid to produce linear force and motion. In pile driving applications, these cylinders are used to lift, position, or hammer the pile into the ground with precision and strength.

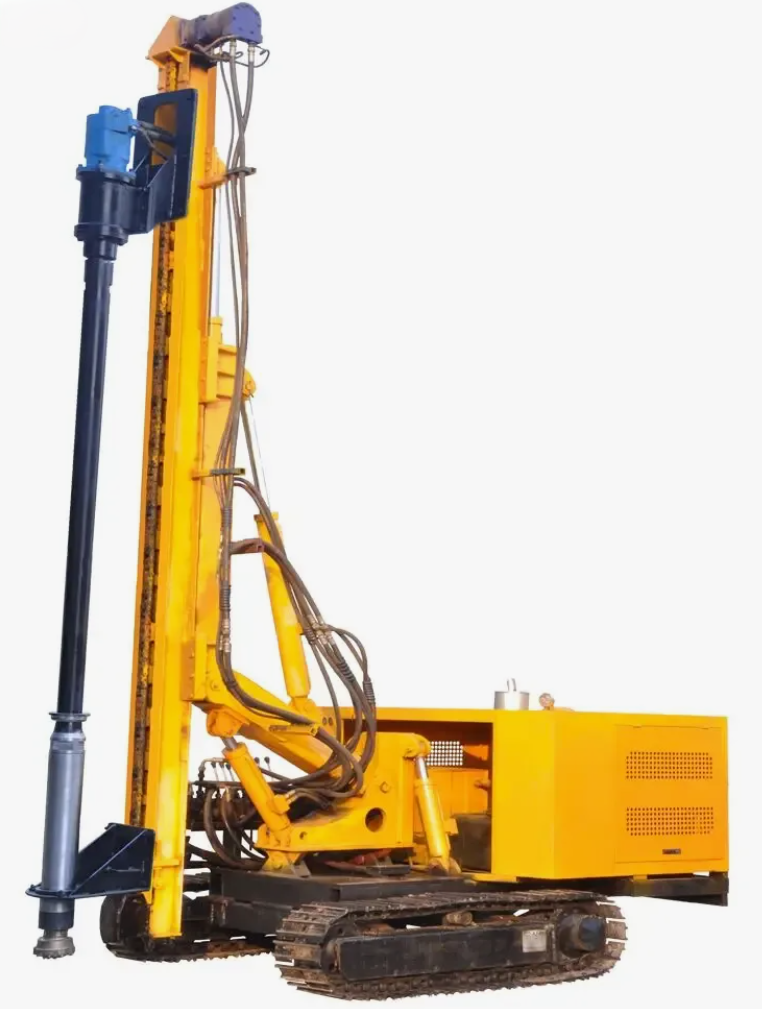

Pile drivers are heavy-duty machines used in construction to drive piles (long structural elements like steel or concrete columns) deep into the soil to provide foundational support for buildings, bridges, and other structures. The cylinder for pile driver provides the power needed to either lift the hammer or push the pile, depending on the machine's design.

Key Functions of Hydraulic Cylinders in Pile Drivers

• Lifting and Lowering the Hammer: In many pile driver setups, the hydraulic cylinder is responsible for lifting the heavy hammer and dropping it with great force onto the pile.
• Adjusting Pile Position: The cylinder helps align and position piles accurately during the driving process.
• Generating Downward Force: In hydraulic press-in pile drivers, the cylinder generates a consistent downward force to press the pile into the ground.

These cylinders must be strong, durable, and precise, as they often operate under extreme conditions, dealing with heavy loads and repetitive impacts.

Common Types of Cylinders for Pile Driver

There are several designs and configurations of cylinders for pile driver, depending on the pile driving system being used:

• Single-acting hydraulic cylinders: Use hydraulic pressure for extension and rely on gravity or external force for retraction.
• Double-acting hydraulic cylinders: Use hydraulic pressure for both extension and retraction, allowing greater control and force.
• Telescopic cylinders: Provide extended reach and are ideal when space is limited but long stroke is needed.

Signs of Wear in Hydraulic Cylinders for Pile Drivers

Because of the intense working conditions, it's crucial to monitor for signs of wear in your hydraulic cylinder for pile applications. Some key indicators include:

• Fluid leaks around seals or cylinder body
• Decreased performance or slower response time
• Unusual noises during operation
• Corrosion or damage to the rod or housing
• Heat buildup, indicating excessive internal friction

Regular inspections and maintenance can help identify issues early and extend the lifespan of the cylinder.

Maintenance Tips for Hydraulic Cylinders

To keep your pile driving equipment operating efficiently:

• Regularly inspect seals and hoses for leaks or cracks.
• Clean the cylinder rod to prevent contaminants from damaging the seals.
• Check for proper alignment of the cylinder during use.
• Use the correct hydraulic fluid as recommended by the manufacturer.
• Store equipment properly when not in use to prevent moisture damage.

Conclusion

A hydraulic cylinder for pile driver is a vital component in any pile driving system, converting hydraulic energy into the mechanical force necessary to drive piles deep into the ground. Whether it's a basic cylinder for pile driver or an advanced multi-stage design, these components must be built to withstand extreme conditions and deliver reliable performance.

Understanding their function, recognizing signs of wear, and following proper maintenance practices will ensure that your pile driving machinery remains efficient and productive for years to come.
