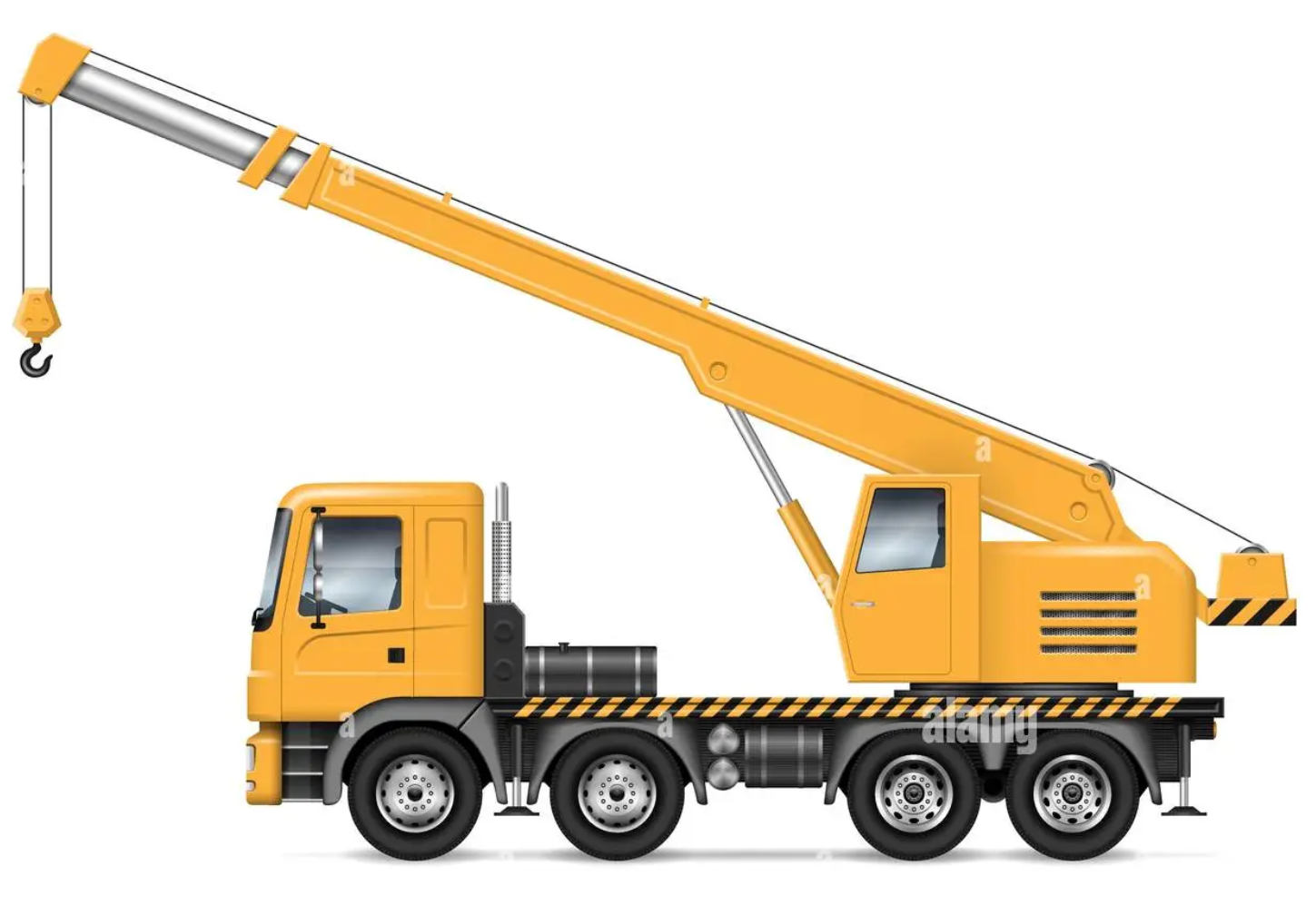

When it comes to heavy lifting and precise positioning on construction sites, truck cranes are the workhorses of the industry. At the heart of their lifting power is a sophisticated hydraulic system—and more specifically, the truck crane hydraulic cylinder. This powerful component is essential for the movement and control of various crane functions, including the extension of crane booms, rotation, and load handling.

Truck Crane Hydraulic Cylinders

A truck crane hydraulic cylinder is a mechanical actuator powered by hydraulic pressure. It converts fluid energy into linear motion, allowing for the controlled movement of various crane parts. These hydraulic cylinders for cranes are typically double acting, meaning they apply hydraulic force in both directions—extending and retracting the piston rod—to offer smooth, precise, and powerful movements.

Used in the elevation, extension, and positioning of crane booms, these cylinders are designed to handle high loads and operate under demanding conditions. Without reliable crane hydraulics, a truck crane simply cannot function effectively.

How the Hydraulic System Works in a Truck Crane

The hydraulic system of a truck crane includes a hydraulic pump, reservoir, control valves, hoses, and hydraulic cylinders. Here's how it works:

1. Power Generation: The pump draws hydraulic fluid from the reservoir and delivers it under pressure through the system.
2. Controlled Flow: Control valves regulate the flow of fluid to various hydraulic cylinders.
3. Cylinder Activation: When fluid enters a double acting cylinder, it pushes the piston in one direction while fluid on the other side is returned to the reservoir, allowing for controlled movement of the crane parts.

This system allows operators to lift, lower, extend, and rotate the crane booms with precision and safety.

Types of Hydraulic Cylinders for Cranes

There are several hydraulic cylinders for cranes, each serving a unique purpose:

• Boom Cylinders: Extend or retract the crane booms, allowing for varying reach and height.
• Outrigger Cylinders: Stabilize the crane by extending supports from the truck base.
• Hoist Cylinders: Help raise and lower the load.
• Swing Cylinders: Rotate the upper part of the crane for directional control.

All these cylinders rely on the same core principle of crane hydraulics—fluid power to generate motion.

Why Double Acting Cylinders Are Preferred

Most modern truck crane hydraulic cylinders are double acting because they allow for greater control and efficiency. With pressure applied on both sides of the piston, operators can lift and lower loads with consistent force and without relying on gravity for return strokes. This results in better stability, enhanced safety, and improved performance, especially when working in challenging conditions.

Conclusion

The truck crane hydraulic cylinder is a vital component in crane operations, delivering the muscle behind lifting, positioning, and stabilizing heavy loads. Integrated into a robust hydraulic system, these hydraulic cylinders for cranes—especially the double acting type—ensure precise control over crane booms and other moving parts. For safe and reliable performance on any job site, understanding and maintaining your crane hydraulics is essential.
