At their core, construction machinery hydraulic cylinders are mechanical actuators designed to provide linear motion and force using pressurized hydraulic fluid. These cylinders are the muscle behind most construction equipment movements, powering boom arms, loader buckets, stabilizers, and more.

The construction industry depends heavily on these cylinders due to the extreme working conditions and heavy-duty requirements on job sites. Whether it's a compact skid steer or a massive dump truck, hydraulic cylinders ensure consistent and safe operation in all environments.

Types of Hydraulic Cylinders in Construction Equipment

There are several types of hydraulic cylinders used in construction machinery, each designed for specific applications:

• Welded Body Cylinders: These are the most common in construction equipment. With a permanently joined end cap and barrel, they offer a compact design ideal for rugged, high-pressure environments.
• Tie Rod Cylinders: More common in industrial settings, but still used in some construction applications. They use threaded rods to hold the cylinder together, making them easier to disassemble and repair.
• Telescopic Cylinders: Often used in dump trucks, telescopic cylinders consist of multiple stages and provide extended reach while maintaining a compact retracted size.
• Double Acting Design: These cylinders use hydraulic pressure to move in both directions, allowing for more control and efficiency, especially when manipulating the boom arm or attachments.

Critical Components: Rod Construction & Piston Rod Strength

One of the key aspects of cylinder performance is rod construction. A robust piston rod is vital for withstanding the massive forces exerted during heavy-duty operation. High-quality rod materials and surface treatments ensure longevity and resistance to bending or corrosion.

Welded rod ends provide additional strength, especially in boom cylinders that bear the brunt of lifting and maneuvering actions in machines like backhoes and cranes.

Applications in Heavy Equipment and Demanding Tasks

Hydraulic cylinders are indispensable in various construction equipment such as:

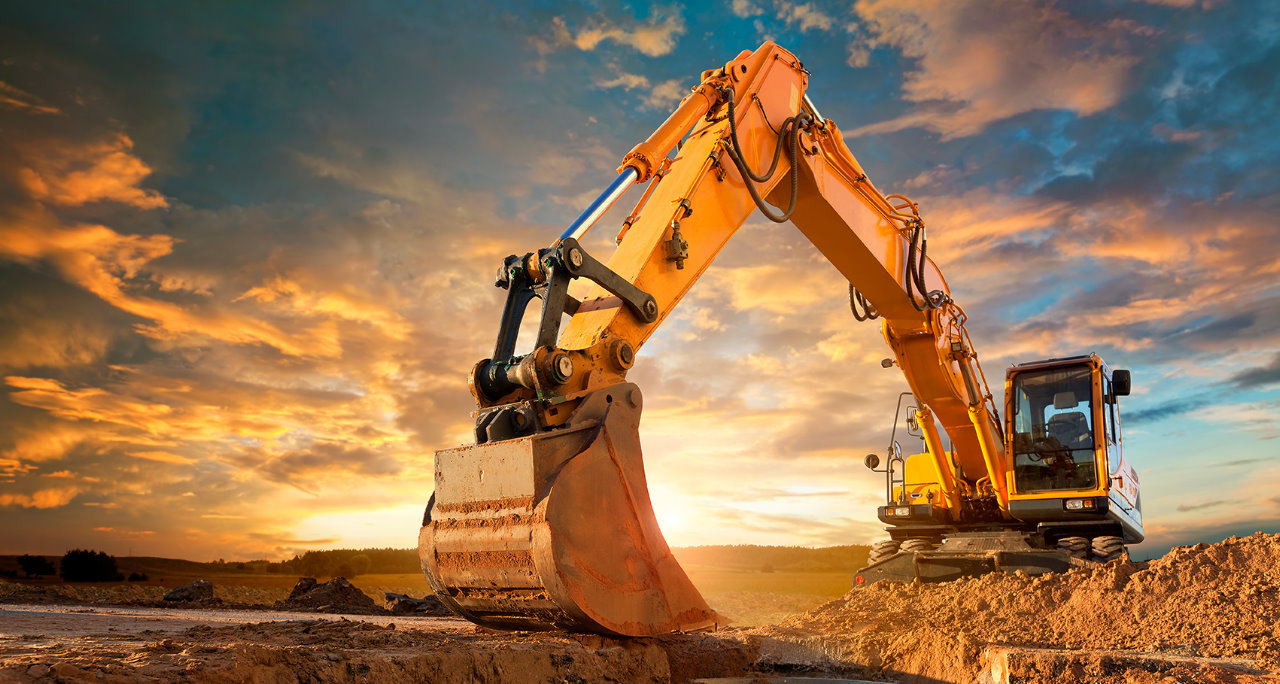

• Excavators – Using boom cylinders to control arm movement.
• Dump Trucks – Employing telescopic cylinders to lift and dump heavy loads.
• Bulldozers, Backhoes, and Loaders – Relying on welded body cylinders for stable and durable motion control.

These applications are considered demanding, often requiring cylinders that can withstand shock loads, side loading, and extreme weather conditions.

Compatibility with Equipment Brands and Aftermarket Solutions

Hydraulic cylinders are engineered to match a wide variety of equipment brands. Whether for OEM installations or replacement cylinders, manufacturers ensure compatibility in dimensions, force capacity, and mounting styles. This standardization supports efficient repairs and minimizes downtime on construction sites.

Why Hydraulic Cylinders Matter

The ability of hydraulic cylinders to handle heavy loads, deliver precise linear motion, and survive demanding applications makes them the backbone of modern construction machinery. Their versatility, from double acting designs to welded body cylinders, ensures they meet the wide-ranging demands of the construction industry.

Without hydraulic cylinders, today’s heavy equipment simply wouldn’t be able to operate with the power, speed, and efficiency required on modern job sites.

Conclusion

From powering the boom arm of an excavator to lifting the bed of a dump truck, hydraulic cylinders are essential components in the world of construction machinery. With specialized designs like tie rod, telescopic, and welded rod cylinders, they enable a broad range of motion and performance capabilities across all types of construction equipment.

Whether you're an operator, engineer, or procurement specialist, understanding the function of hydraulic cylinders helps you choose the right solution for your heavy equipment needs.
